tubular pasteurizer

PRODUCTS DETAIL



About plate pasteurizer

Milk plate pasteurizer is a kind of sterilization equipment specially designed for milk drinks or similar liquid materials. It's a ideal equipment to extend the shelf life of materials by sterilization and cooling. The heating, sterilization, heat preservation and cooling requirements designed according to different processes, different materials and different process combinations can meet the process requirements. With a variety of safety protection measures, high temperature, alarm and low temperature backflow. At the same time, according to the requirements of users, automatic control system can be configured.

Our strengths

● Large output and small loss
● Extend the shelf life of products
● It can produce high quality products and keep nutrients
● Aromatic substances can be added and mixed precisely
● Application of high technology to save energy consumption
● Multiple products can be produced on the same production line
● It can be designed according to the special requirements of users

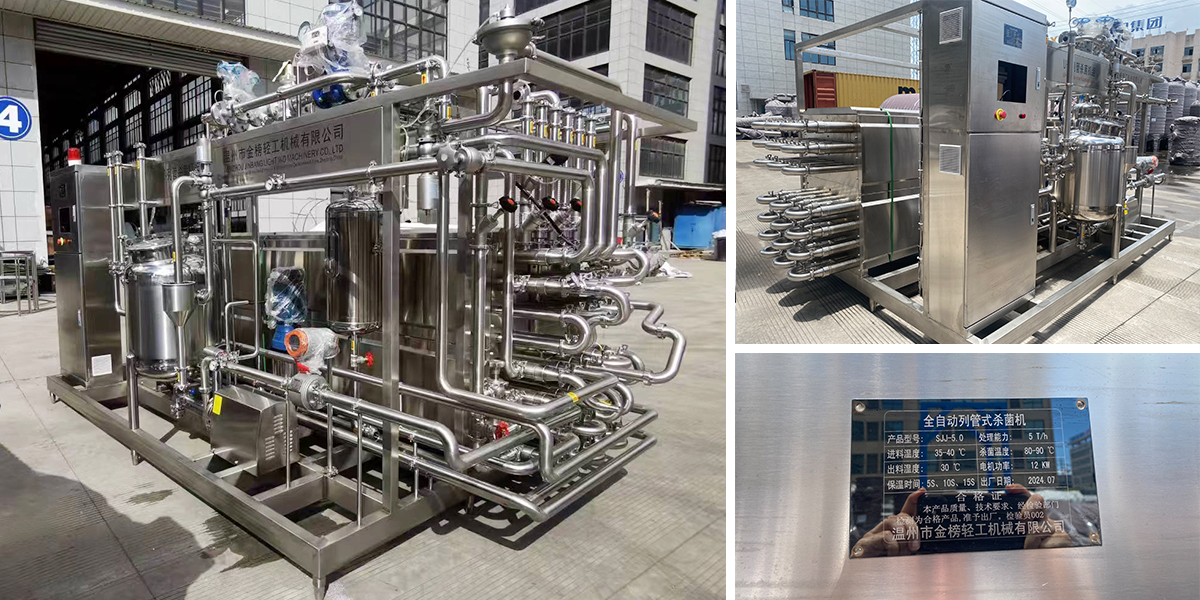

About Tubular sterilizers

Tubular sterilizers are widely used in the sterilization of medium and low viscosity materials such as fruit juice drinks, milk, fruit juice with particles, sauces, soups and so on. The material is sterilized and cooled by this equipment to reach the purpose of extending the shelf life. According to the user's different process requirements for material sterilization, heat preservation, and cooling, the combined system design of single-stage, double-stage, and multi-stage forms can be carried out.

1.Full-automatic and semi-automatic at selection

2.Capacity: 0.3T/H-10T/H

3.Pasteurization method and UHT sterilization method applied

4.Sterilization temperature:80-135℃

5.Sterilization time: 5s,15s,30s for selection

6.Design as per client's process requirements

Product Detail

Control Panel:

Created for operators of every experience level, our integrated automation software is connected to a 10.1" touch screen interface, which gives operators an overview of the pasteurizer, including temperatures, pressures etc. Its performance is displayed in real time and, if there is a fault, the operator receives an immediate alert. If the automation solution is integrated in the line, the whole line can be viewed from one interface.

Smart Balance Tank:

A smart balance tank equipped with CIP washing ball, high level/low level transmitter. When the product at high level in the balance tank, the feeding pump will automaticlly stop. When the product at low level in the balance tank, the product pump will automaticlly stop.

Steam Control system:

Steam Control System is an inportant part of Pasterurizer, It contains steam rate adjustable valve, plunger valve, steam pressure reducing valve, steam trap and steam filter. A good steam control system can guarantee the machine working stable. All of the steam valves are come from Spirax Sarco (England).
