ASME standard Stainless Steel pressure reactor are suitable for use in pharmaceutical, bioengineering, fine chemicals, chemical synthesis and other industries. The materials are all made of SUS304 or SUS316L. The tank body is provided with a jacket, and the jacket structure is divided into three types: a standard jacket, an outer coil jacket, and a rice honeycomb honeycomb jacket...

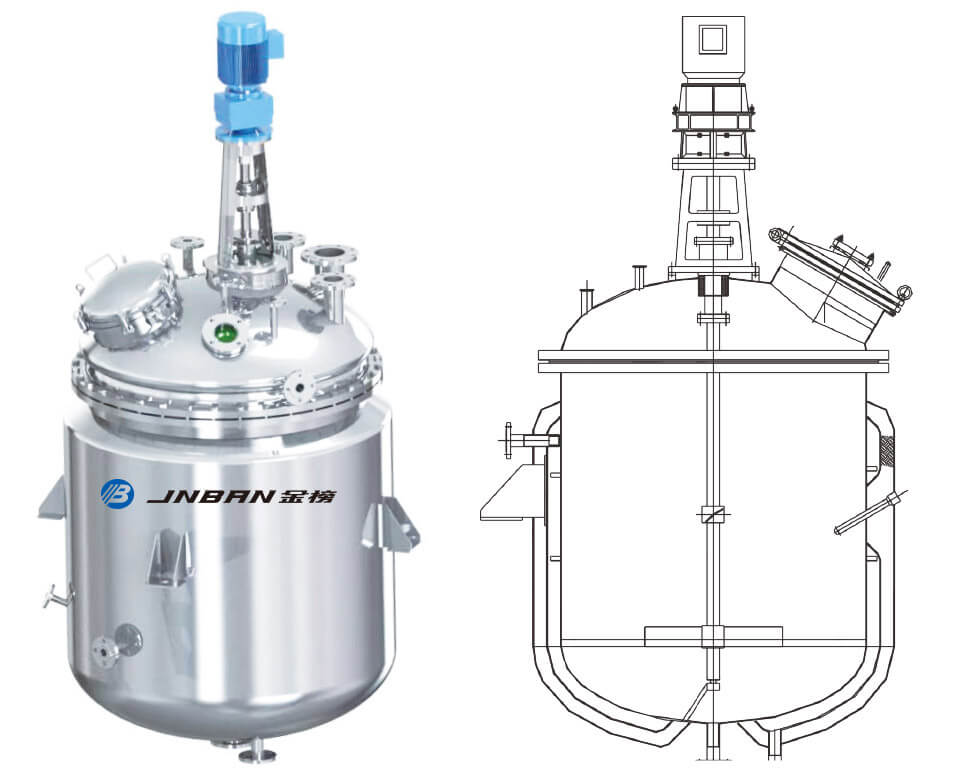

ASME standard Stainless Steel pressure reactor are suitable for use in pharmaceutical, bioengineering, fine chemicals, chemical synthesis and other industries. The materials are all made of SUS304 or SUS316L. The tank body is provided with a jacket, and the jacket structure is divided into three types: a standard jacket, an outer coil jacket, and a rice honeycomb honeycomb jacket. It can be heated and cooled, the inner surface is mirror polished, there is no sanitary corner, and the fully enclosed design ensures that the material is always under sterile condition. The head (taper) is spin-processed and GMP compliant. The mixing device adopts sanitary mechanical seal, the container is insulated with polyoxyester or aluminum silicate, the interface adopts IOS standard quick-fit clamp type, which is convenient and hygienic. The ferry is processed by spinning, and the outer surface is polished, sandblasted, frosted or cold. Rolling the original color matt and other forms, so that the container can display its excellent quality in any venue. The equipment is equipped with a sterile air respirator, CIP cleaning nozzle, sight glass, and French-style quick opening manhole.
| Model | Specification (L) | Inner tube diameter Φ (MM) | Jacket diameter Φ (MM) | Motor Power(KW) | Reducer model | Stirring speed (r.p.m) |
| JBFYF-3 | 30 | 400 | 500 | 0.6~1.1 | m2 | 60~85 |
| JBFYF-5 | 50 | 500 | 600 | 0.6~1.1 | m3 | 60~85 |
| JBFYF-10 | 100 | 550 | 650 | 1.1~1.5 | m4 | 60~85 |
| JBFYF-15 | 150 | 600 | 700 | 2.2 | m6 | 60~85 |
| JBFYF-20 | 200 | 650 | 750 | 2.2 | m6 | 60~85 |
| JBFYF-30 | 300 | 800 | 900 | 2.2 | m6 | 60~85 |
| JBFYF-50 | 500 | 900 | 1000 | 2.2 | m6 | 60~85 |
| JBFYF-80 | 800 | 1100 | 1200 | 4 | m8 | 60~85 |
| JBFYF-100 | 1000 | 1200 | 1300 | 4 | m8 | 60~85 |
| JBFYF-150 | 1500 | 1300 | 1400 | 4 | m8 | 60~85 |
| JBFYF-200 | 2000 | 1400 | 1500 | 4 | m8 | 60~85 |
| JBFYF-250 | 2500 | 1400 | 1500 | 7.5 | BLB7.5-4-13 | 90 |
| JBFYF-300 | 3000 | 1400 | 1500 | 7.5 | BLB7.5-4-13 | 90 |
| JBFYF-350 | 3500 | 1400 | 1500 | 7.5 | BLB7.5-4-13 | 90 |
| JBFYF-400 | 4000 | 1500 | 1600 | 7.5 | BLB7.5-4-13 | 63 |
| JBFYF-500 | 5000 | 1600 | 1700 | 7.5 | BLB7.5-4-13 | 63 |
| JBFYF-600 | 6000 | 1800 | 1800 | 15 | BLB7.5-4-13 | 100 |
| JBFYF-800 | 8000 | 2000 | 2100 | 15 | BLB7.5-4-13 | 100 |
| JBFYF-3200 | 32000 | 3000 | 3200 | 37 | BLB450-11-45 | 50~100 |
Stainless steel reactors are commonly used in the chemical, pharmaceutical, and food industries for mixing, blending, and reacting various materials. These reactors are designed to withstand high pressure, temperature, and corrosive environments.
Stainless steel is an ideal material for reactors due to its excellent mechanical properties, corrosion resistance, and durability. It also has a high melting point, which makes it suitable for applications that involve high temperatures. The most commonly used grades of stainless steel for reactors are 304 and 316, which have a high resistance to corrosion and chemical attack.
Stainless steel reactors are available in a variety of shapes and sizes to meet different process requirements. Some of the common shapes include cylindrical, conical, and spherical. The size of the reactor depends on the volume of the material being processed and the required operating conditions. Large reactors may be several meters in diameter, while smaller ones may be only a few centimeters.
The design of a stainless steel reactor depends on various factors such as the type of material being processed, operating conditions, and the desired outcome. Reactors can be designed for batch or continuous operation, and may have various types of agitation systems such as impellers, turbines, or propellers.
Stainless steel reactors can also be equipped with various types of accessories such as pressure relief valves, sight glasses, temperature sensors, and sampling ports. These accessories are important for monitoring and controlling the process conditions to ensure safe and efficient operation.
Stainless steel reactors are typically manufactured using advanced welding techniques such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding. These techniques ensure that the reactor has a strong and durable weld, which is essential for maintaining process integrity.
In conclusion, stainless steel reactors are an essential piece of equipment for many industries. They offer excellent mechanical properties, corrosion resistance, and durability, making them ideal for various applications. With proper design, operation, and maintenance, stainless steel reactors can provide safe and efficient processing of a wide range of materials.
