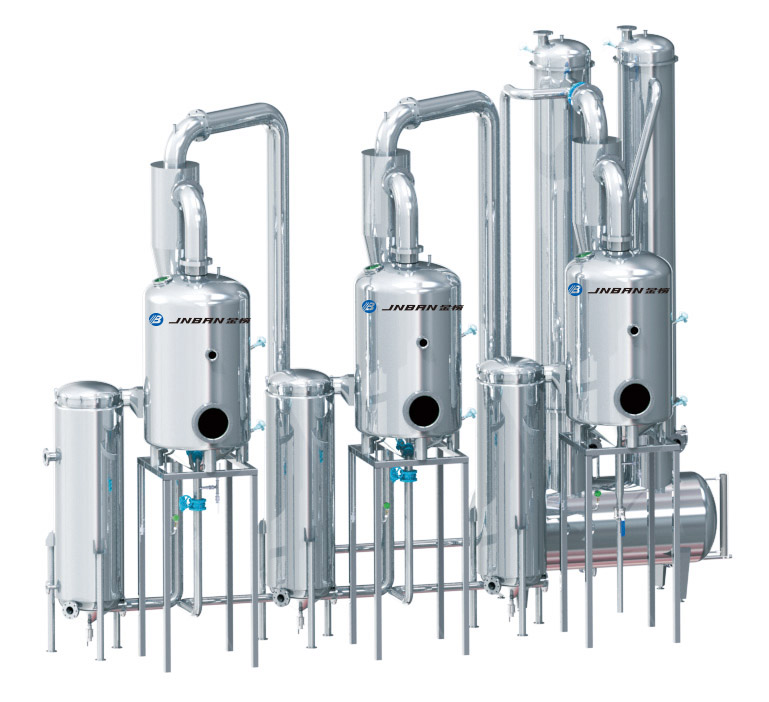

The company has extensively combined the advantages of concentrating equipment and other industry concentrating equipment, and combined with the characteristics of traditional Chinese medicine extracts, designed and developed a series of LJN three-effect (double-effect, single-effect)
falling film continuous feed concentrator. The features of the device are as follows:
1.Continuous feeding and discharging, the system is stable and easy to operate. When working in this series of equipment, it only needs to adjust various parameters as required at the initial feeding stage, and at the same time ensure continuous and stable supply of materials, convenient adjustment,
continuous concentration, and meet the requirements of qualified specific gravity and can simultaneously recover the solvent.
2.The concentration ratio is large (up to 1.25-1.28), the thermal efficiency is high, and the energy saving effect is remarkable. In the structure of the system, we adopt an optimized design scheme to make the evaporation heat transfer coefficient reach 3400-3800w (m2·K), which is very suitable and beneficial for the concentration of Chinese herbal extracts. The main reason is that the materials are in the heating tube. The film forms a rapid flow, and the heating temperature difference is small (only 8-10°C), the evaporation temperature is low, and the material can form a rapid flash after entering the evaporator. The residence time and heating time of the chemical liquid in the heating tube are short, and the viscosity of the material is wide (50-500 cp). The heat is uniform and difficult to crystallize and coke, the damage to the active ingredient is small, the heat energy is utilized sufficiently, and the energy saving effect is remarkable.
3.Easy to adopt advanced control methods. Because the LJN series concentrating process mainly uses the temperature of each effect as the control parameter, the parameters of the system are stable during operation, and it is easy to adopt advanced automatic control (PLC and human-machine interface control), and the control equipment cost is relatively low, for the production of traditional Chinese medicine. Achieve greater automatic control with greater convenience.
4.The structure design is advanced and reasonable. In terms of structure, we adopt an optimized design scheme. We use advanced liquid distribution device to distribute the liquid in the pipe during the feeding, so that the material can enter the heating pipes evenly. At the same time, the inner wall mirror with high quality imported is selected. The tube is used as a heating tube, so that the flow resistance of the material in the tube is small, the speed is fast, and the scale is not easily precipitated. In order to increase the yield of concentration, the system is equipped with an advanced mist trap to eliminate the ability of entrainment of the mist, the separation efficiency can reach 96-99%, and the resistance drop is small.
| Specification/Model | LJN500 | LJN1000 | LJN1500 | LJN2000 | LJN3000 | LJN5000 | LJN6000 | LJN8000 |
| Evaporation | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 |
| Steam pressure | 0.1~0.25 | 0.1 ~0.25 | 0.1~0.25 | 0.1~0.25 | 0.1~0.25 | 0.1~0.25 | 0.1~0.25 | 0.1~0.25 |
| Steam consumption (kg/h) | 185 | 370 | 555 | 740 | 1110 | 1850 | 2220 | 2960 |
| Circulating water consumption (T/n) | 5 | 10 | 13 | 15 | 18 | 25 | 30 | 40 |
| Medium | ||||||||
| Dimensions LxWxH (mm) | 7080x900 x3500 | 7680x1000 x4000 | 8380x1100 x4600 | 8890x1100 x4600 | 9500x1300 x4900 | 10200x1400 x5300 | 10800x1500 x5800 | 11500x1600 x5800 |
| Vacuum degree (MPa) | Evaporation temperature (℃ ) | |
| One effect | 0.048-0.057 | 80-85 |
| Dual effect | 0.031-0.038 | 70-75 |
| Three effect | 0.019-0.025 | 60-65 |
